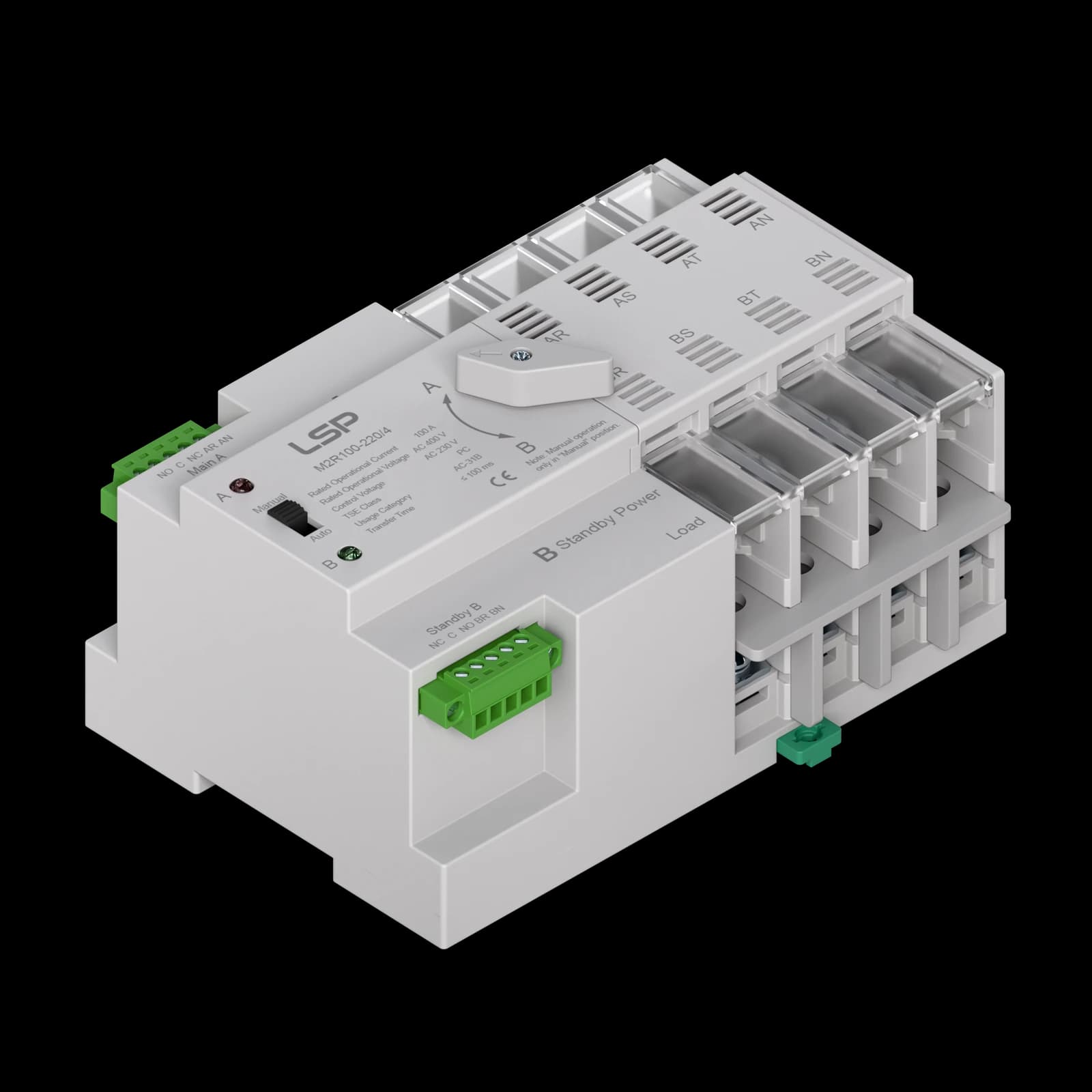

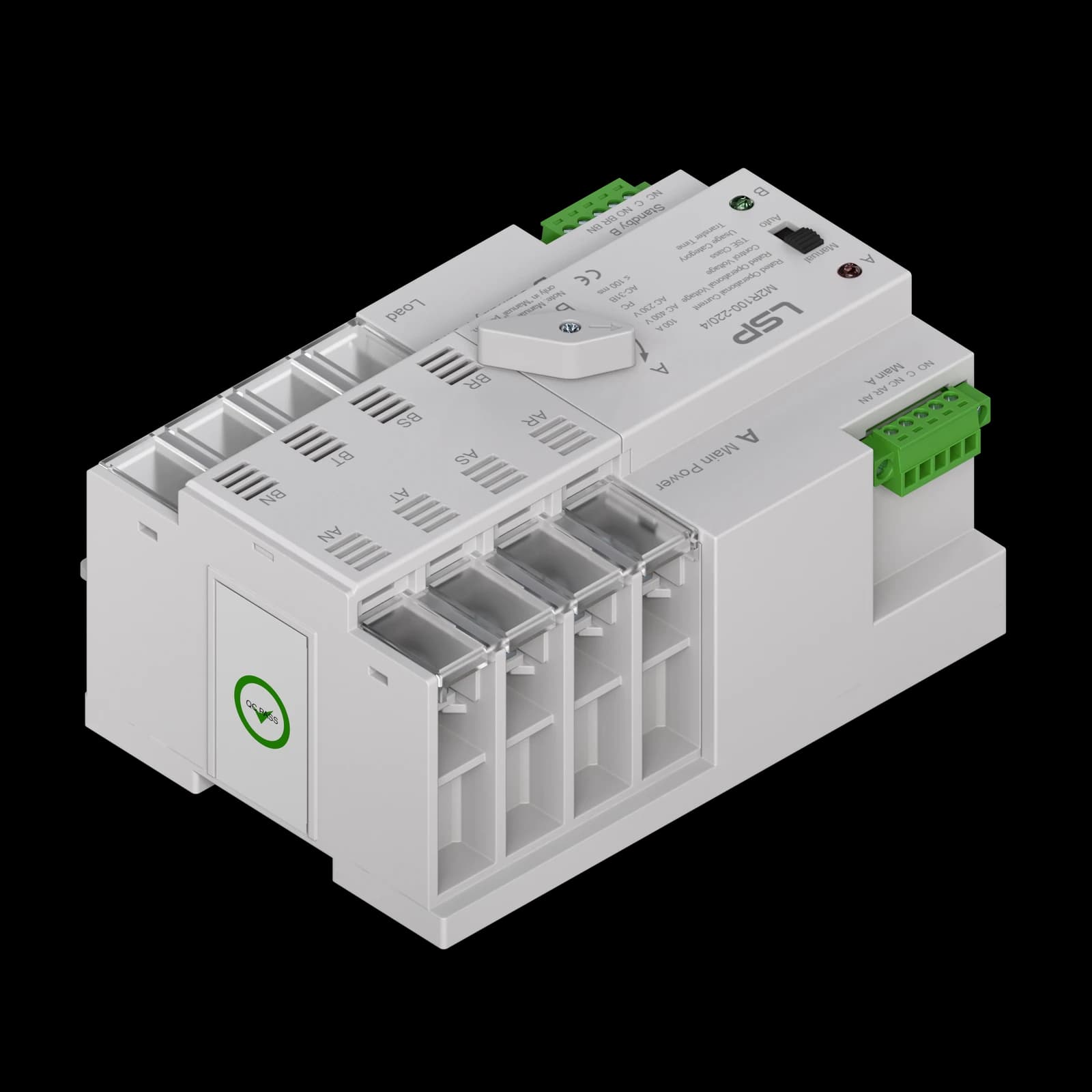

Modular terminal layout
Source and load terminals are arranged for organized panel integration and model review.
INDUSTRIAL MODULAR AUTOMATIC TRANSFER SWITCH

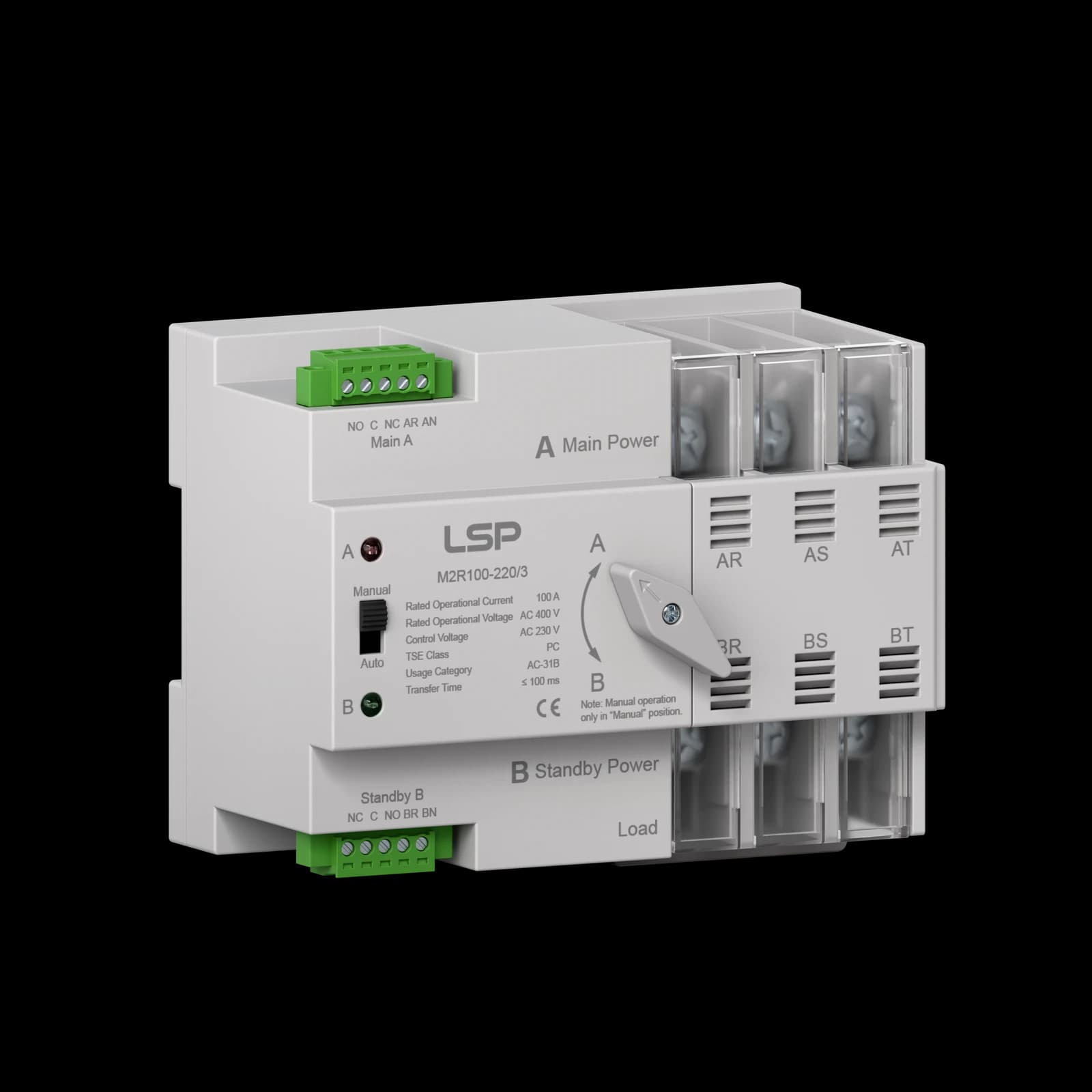

M2R Series Automatic Transfer Switch
A modular automatic transfer switch platform for distribution panels that need 2P, 3P or 4P source changeover with clear operating access.
Representative Range40A – 100A
Pole Options2P / 3P / 4P
Control VoltageAC 110V / AC 220V
Transfer ClassPC Class
Model reviewOEM supportProject documents
Multiple pole options
Select 2P, 3P or 4P configurations around the system and neutral-switching requirement.
Visible operating access
Front status indication and manual/automatic operation support commissioning and maintenance review.
Project-ready OEM support
Private labeling, packaging and current model documents can be coordinated for distributor programs.
PRODUCT OVERVIEW
A flexible platform for larger panel applications
The M2R Series is built around modular source and load connections, visible status indication and automatic/manual operation. Representative M2R models cover 40A, 63A and 100A configurations for single-phase and three-phase systems.
The family is suited to commercial and light-industrial panels, generator backup and OEM equipment programs. Model selection should confirm current, poles, control voltage, wiring and installation space.
- Representative 40A, 63A and 100A models

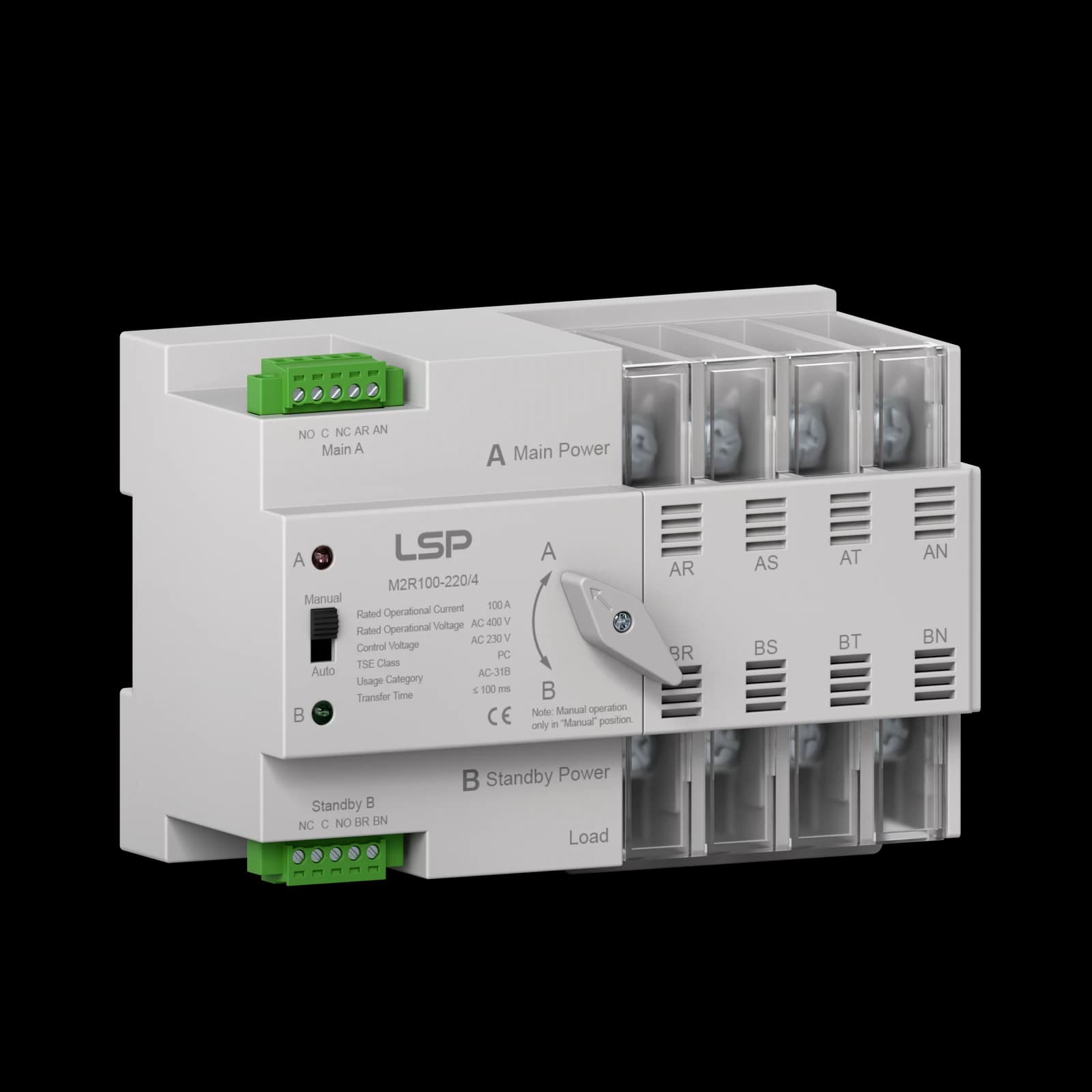

- 2P, 3P and 4P configurations
- Automatic and manual operation
- Accessible modular terminals and status indication
TECHNICAL DATA
Shortlist the configuration, then verify the model
These values support the first conversation. Final technical documents follow the confirmed model.
Electrical
- Representative rated current
- 40A / 63A / 100A
- Pole configurations
- 2P / 3P / 4P
- Control voltage versions
- AC 110V / AC 220V
- Rated operational voltage
- Up to AC 400V on the shown model
Operation & Supply
- Transfer class
- PC Class on the shown model
- Operating modes
- Automatic / manual
- Branding
- LSP standard or private label
- Documents
- Model-specific files on request
Build your starting configuration
Use this result as an inquiry reference. LSP will verify the final model against your application.
Inquiry referenceM2R Series · 40A · 2P · AC 110V
Confirm with an engineerTRANSFER WORKFLOW
From source monitoring to load transfer
The exact sequence depends on the selected model and project settings. This overview shows the typical decision flow.
Monitor the normal source
The controller observes the available source condition.
Detect the configured condition
The transfer decision follows the model and project settings.
Operate the transfer mechanism
The switch changes the load connection between sources.
Indicate operating status
Front controls and indicators support operation and review.
DRAWINGS & WIRING
Get the document for the exact model you are specifying
Dimensions, terminal arrangements and wiring information vary by configuration. Ask for the current model-specific file after confirming current, poles and control voltage.
Download product catalogAPPLICATIONS
Where the M2R Series fits
Commercial distribution panels
Light-industrial power systems
Generator-backed facilities
OEM panel and equipment programs
