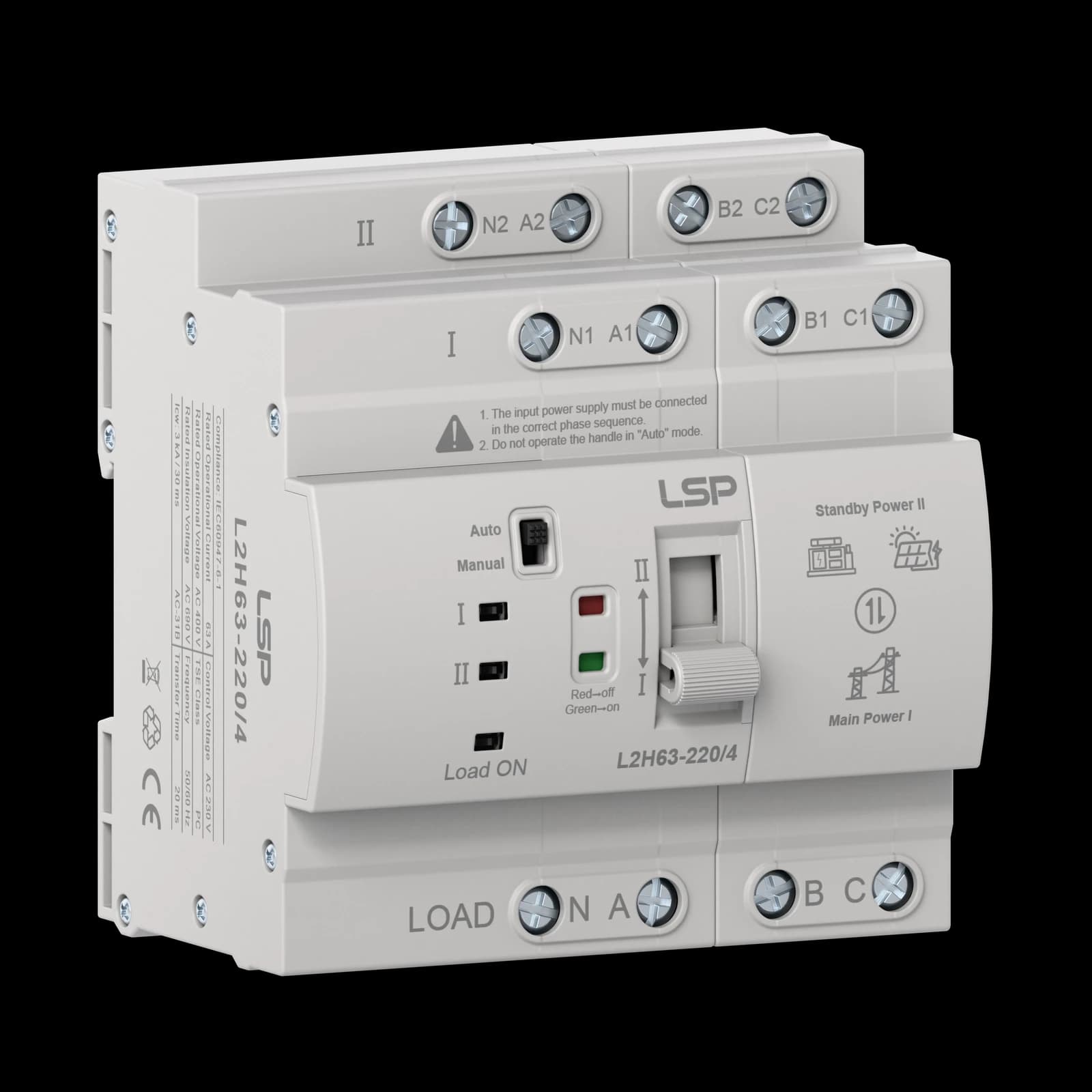

Integrated front control
Automatic/manual selection, source indication and operating handle are grouped for straightforward access.
COMPACT MODULAR AUTOMATIC TRANSFER SWITCH
L2H Series Automatic Transfer Switch
A compact PC-class automatic transfer switch family with clear front controls for single-phase and three-phase backup-power systems.
Representative Range40A – 63A
Pole Options2P / 4P
Control VoltageAC 110V / AC 220V
Transfer ClassPC Class
Model reviewOEM supportProject documents
Compact modular body
A panel-friendly format for distribution systems where organized installation and clear wiring matter.
2P and 4P configurations
Match common single-phase and three-phase plus neutral source-transfer arrangements.
OEM-ready supply
Coordinate private labels, model designation, packaging and documents around the confirmed configuration.
PRODUCT OVERVIEW
Clear control in a compact modular format

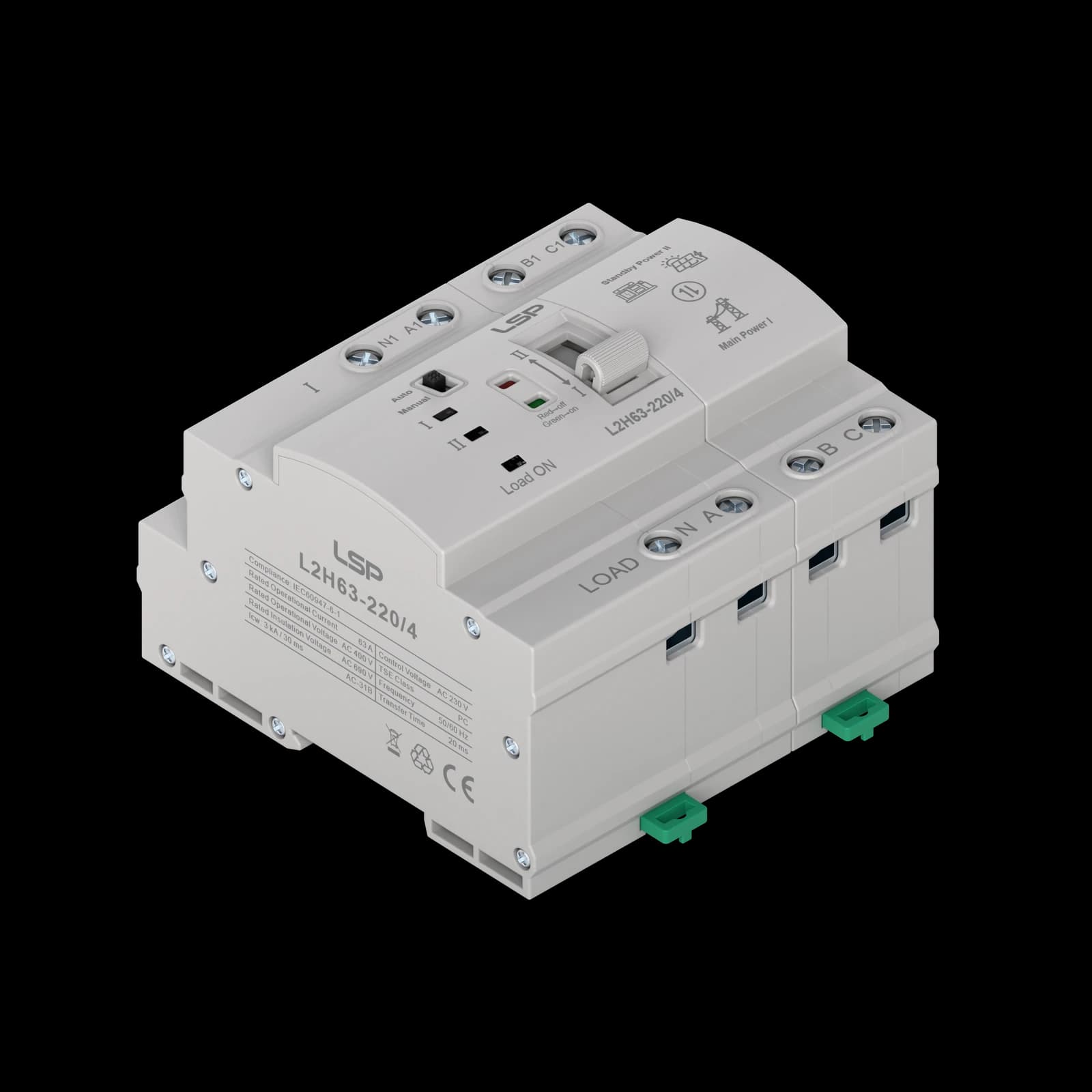

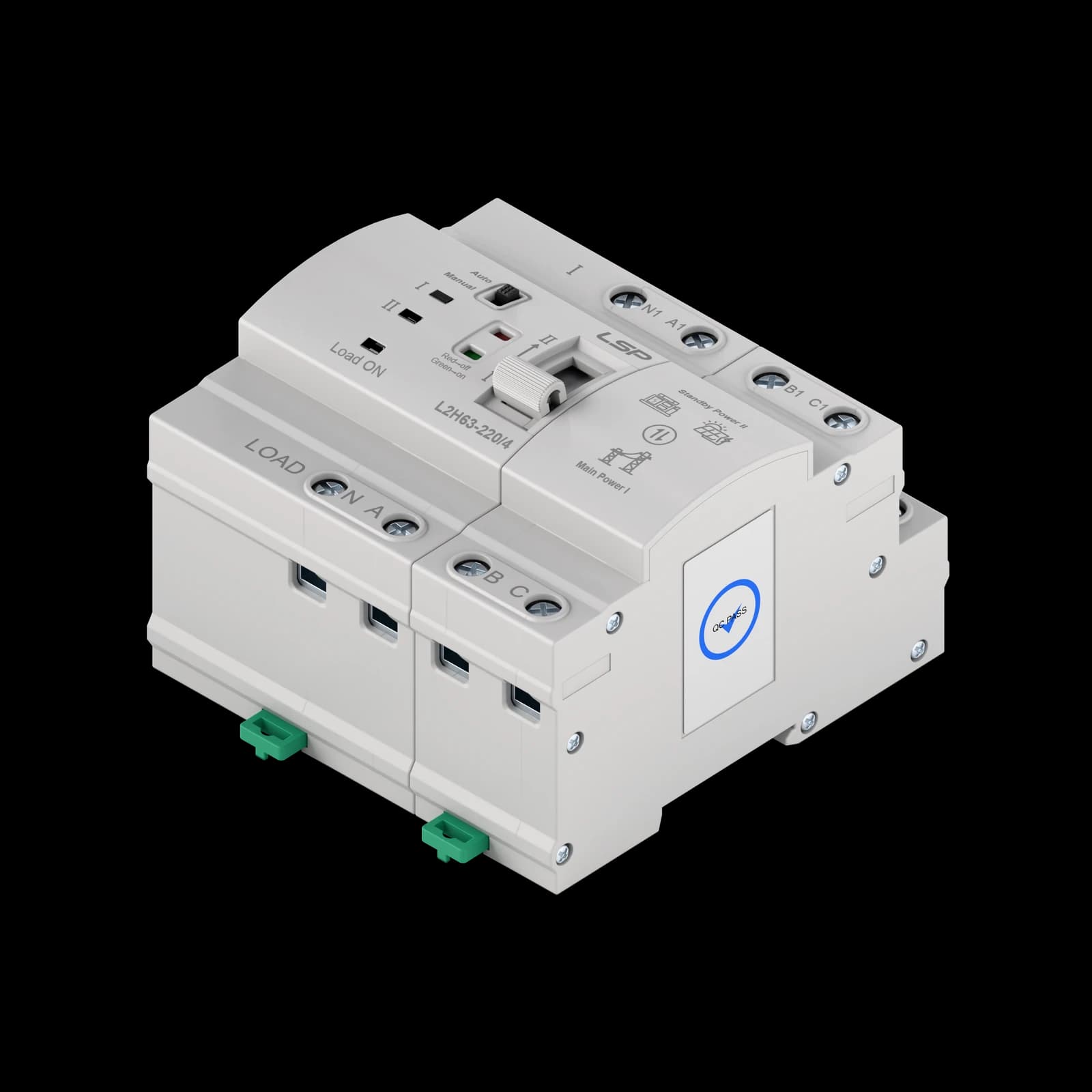

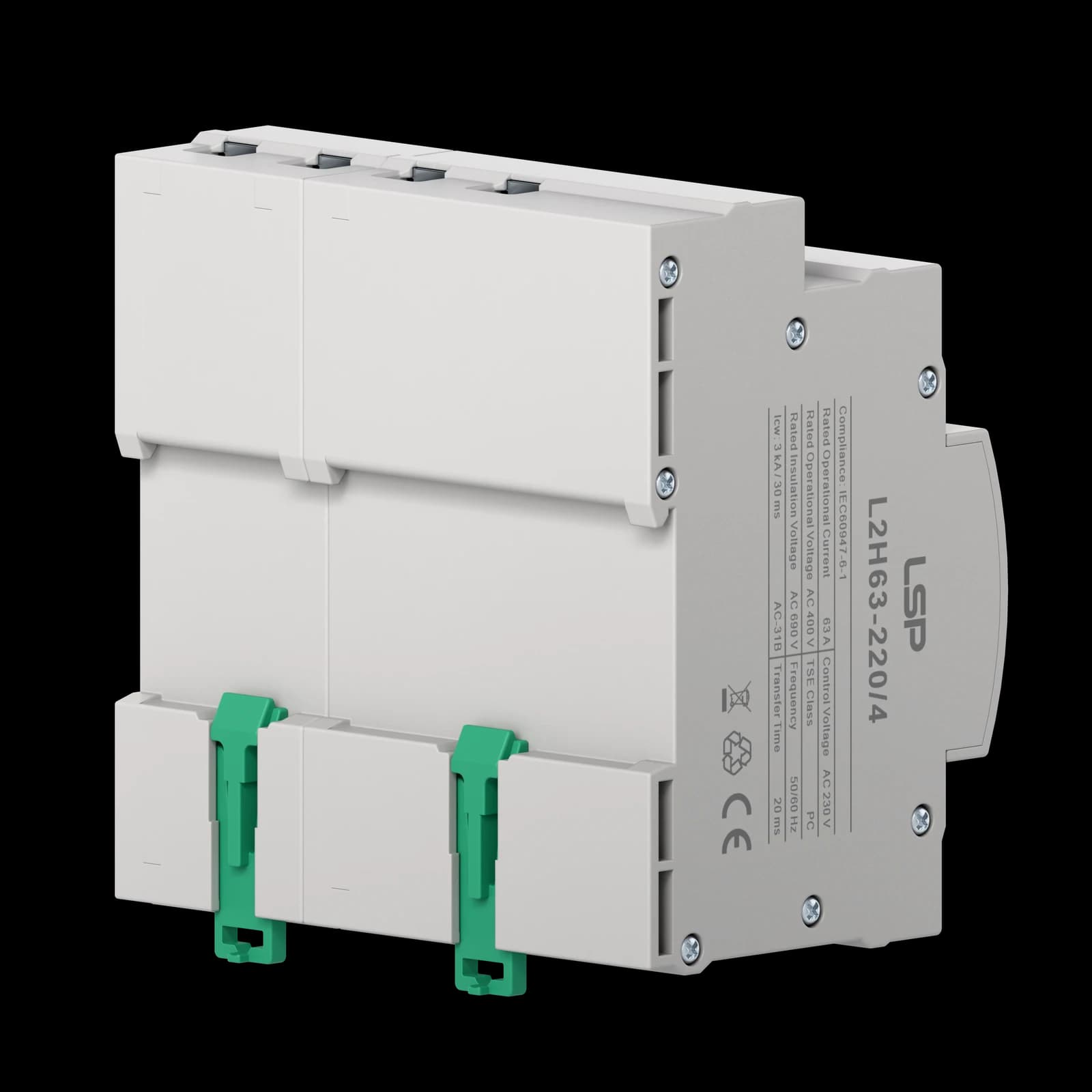

The L2H Series combines automatic source transfer, manual operation and visible source indication in a compact modular enclosure. The representative L2H63 platform supports 2P and 4P configurations for distribution and backup-power panels.
Available 110V and 220V control-voltage versions help buyers match regional and project requirements. LSP can coordinate model selection, private labeling, packaging and model-specific documents for OEM supply.
- Representative 40A and 63A configurations
- 2P and 4P product options
- Automatic and manual operating modes
- 110V and 220V control-voltage versions
TECHNICAL DATA
Shortlist the configuration, then verify the model
These values support the first conversation. Final technical documents follow the confirmed model.
Electrical
- Representative rated current
- 40A / 63A
- Pole configurations
- 2P / 4P
- Control voltage versions
- AC 110V / AC 220V
- Rated operational voltage
- Up to AC 400V on the shown 4P model
Operation & Supply
- Utilization category
- AC-31B on the shown model
- Operating modes
- Automatic / manual
- Branding
- LSP standard or private label
- Documents
- Model-specific files on request
Build your starting configuration
Use this result as an inquiry reference. LSP will verify the final model against your application.
Inquiry referenceL2H Series · 40A · 2P · AC 110V
Confirm with an engineerTRANSFER WORKFLOW
From source monitoring to load transfer
The exact sequence depends on the selected model and project settings. This overview shows the typical decision flow.
Monitor the normal source
The controller observes the available source condition.
Detect the configured condition
The transfer decision follows the model and project settings.
Operate the transfer mechanism
The switch changes the load connection between sources.
Indicate operating status
Front controls and indicators support operation and review.
DRAWINGS & WIRING
Get the document for the exact model you are specifying
Dimensions, terminal arrangements and wiring information vary by configuration. Ask for the current model-specific file after confirming current, poles and control voltage.
Download product catalogAPPLICATIONS
Where the L2H Series fits
Commercial distribution panels
Generator-backed building systems
Solar and storage changeover
OEM distribution equipment
